Highly accurate 3D Peoplecounter with the latest AI technology

Buy now from Eastek!

Installation height (min/max) 2m–6m = coverage area:
3m ceiling height = 9.6m x 9.6m
6m ceiling height = 10m x 10m

Minimum illumination at the installation location: 2 lux

Possible plugins: Gender Recognition, Apparent Age, Shopping Cart Detection, Wheelchair Detection, Bicycle Detection

Overheating protection Automatic shutdown from 79°C within the sensor

Accessories PA-PC2-MB, PA-PC2-FM, PA-PC2-SM, PA-PC-MPS, PA-PC2-DP, PA-PC2-TA, PA-PC-PS

Technical data:

Eastek offers a wide range of in-house products for this Xovis Peoplecounter.

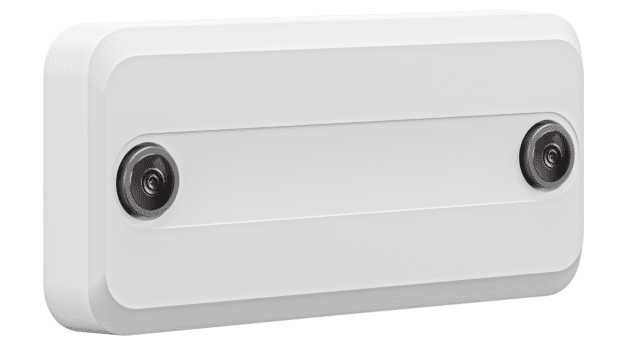

The Xovis PF series is the next generation of image-based people flow management and the first choice for retailers and other businesses transitioning from visitor counting to more advanced in-store analytics use cases.

With up to eight times greater coverage and more processing power than the PC-series model, the PF series also offers attention metrics (available from Q2 2026)—a powerful new way to measure visitor engagement—and other features not found in other models. Thanks to integrated processing, the PF series remains fully compliant with evolving data protection regulations.

The PF series is powered by Xovis' next-generation SoC and a new optical 3D system. A breakthrough in AI edge computing and 3D vision.

Key performance features:

• Up to 7.9 TOPS CNN performance on an AI-native NPU: Accelerates the convolutional models that drive Xovis's 3D tracking accuracy and optical pipeline.

• The NPU is up to 3 times faster than the widely used NXP i.MX8 and up to 22.5 times faster than the PC2SE series: Provides a strong foundation for more demanding CNN workloads.

• Quad-core CPU (4×2.1 GHz) and 44.8 GFLOPS GPU: Delivers exceptional computational density for real-time processing and next-generation challenges.

• AI-native architecture, optimized for modern CNNs: Exceptional performance for CNN-based 3D image processing while enabling future innovation in AI models.

Up to 8 times greater coverage

The Xovis PF sensor has a detection area up to 8 times larger than our PC-series model and covers up to 100 m². It is the perfect solution for ROI-conscious, data-driven businesses that want to transition to more advanced analytics applications without unnecessary installation and maintenance costs. Fewer sensors for a larger detection area mean less cabling, less installation effort, lower energy consumption and reduced maintenance costs.

Increased processing power

Equipped with a new chip offering significantly increased processing power, the PF series handles complex detection tasks, delivers exceptional tracking quality, supports larger multisensor configurations (up to 15 sensors without SPIDER) and offers advanced KPIs such as attention metrics (available from Q2 '26)—all fully integrated, without requiring an additional edge device.

Even easier setup

Automatic height detection, automatic calibration and the elimination of floor masks, lighting masks and taboo masks reduce the time required to commission the PF sensor. PF sensors run firmware 5 (>5.9), meaning they have the same user interface, operation and REST APIs, with no special effort required to integrate them into your solution. Fully integrated into our HUB environment (device control, coverage calculator, monitoring and alerting, and more)

Attention metrics

Xovis is already a pioneer in using AI to capture additional layers of privacy-compliant insights and continues to push the boundaries of what is possible with the PF. Attention metrics (available in Q2 2026), a powerful new tool for measuring visitor engagement, are one of many new features available exclusively on the PF.

Future-proof people counting technology

High tracking accuracy, designed for compliance with data protection regulations, Power over Ethernet (PoE) and state-of-the-art embedded processing technology. The new hardware platform was designed for powerful on-device AI performance, enabling advanced analytics directly in the sensor. Delivering such features in a compact form factor reflects the highest level of sensor manufacturing and sets a new market standard. With these strengths at its core, this sensor is ideally equipped to meet the next generation of people flow analytics challenges.

Flexible mounting heights and large-area tracking

PF-L sensors can be installed at heights between 2 and 6 meters (6.56 to 19.69 ft). Up to 15 sensors can be combined into a multisensor that covers large areas. For more than 15 sensors, a SPIDER processing unit can be used. PF-series sensors can also be combined with PC-series sensors in a multisensor configuration. Use our coverage calculator and our selection guides to choose the sensor best suited to your project.

What are the benefits of AI extensions?

• Increase your revenue by bringing end customers the insights available through AI extensions, either directly within a project or as an upselling opportunity after a project has already been implemented.
• Use AI extensions as a decisive differentiator in public tenders.
• Please note: Staff exclusion/blocked areas are currently not available in the PF series. New approaches for these use cases are planned.

How can People Attributes help your retail end customers?

People Attributes AI extensions such as gender expression estimation, apparent age estimation and gaze direction enable users of Xovis sensors to capture privacy-compliant demographic and behavioral data about visitors. Xovis's powerful AI extension was developed with advanced machine-learning algorithms and helps end customers

• improve marketing campaigns and optimize merchandising
• increase sales by tailoring the shopping experience to visitors' demographic data
• ensure data accuracy by distinguishing visitor groups
• manage operating costs and support layout improvements to attract the attention of different genders
• strengthen brand reputation and improve the well-being of visitors and employees

How can Object Detection help your end customers?

Automatic detection of strollers, wheelchairs, bicycles and shopping carts helps end customers improve store design, optimize operations, understand shopping strategies and improve the customer experience—all while promoting inclusive mobility and complying with data protection regulations. The object detection AI extensions

• improve the customer experience by understanding and addressing the needs of parents, customers with disabilities and cyclists.
• improve space management by optimizing store fixtures for easy navigation and accommodating special needs.
• improve customer service by proactively supporting customers with strollers/buggies or wheelchairs.
• provide insights into visitors' various shopping strategies and tendencies by detecting shopping carts.

For evaluating the measurement options described above, we are happy to offer you our fee-based Vemcount cloud service. Learn about the affordable options of Vemcount Lite, Basic or Business.

We are happy to install this Peoplecounter for you on site in Germany, Austria, Switzerland, the Netherlands and many other countries.

Important information:

This sensor is a highly accurate Peoplecounter. The sensor must be set up by qualified personnel. You can book commissioning through us (article 103325).

To evaluate the data, you need a cloud service or in-depth knowledge of API queries.

Please order the device only if you have the appropriate knowledge or consult us beforehand.
