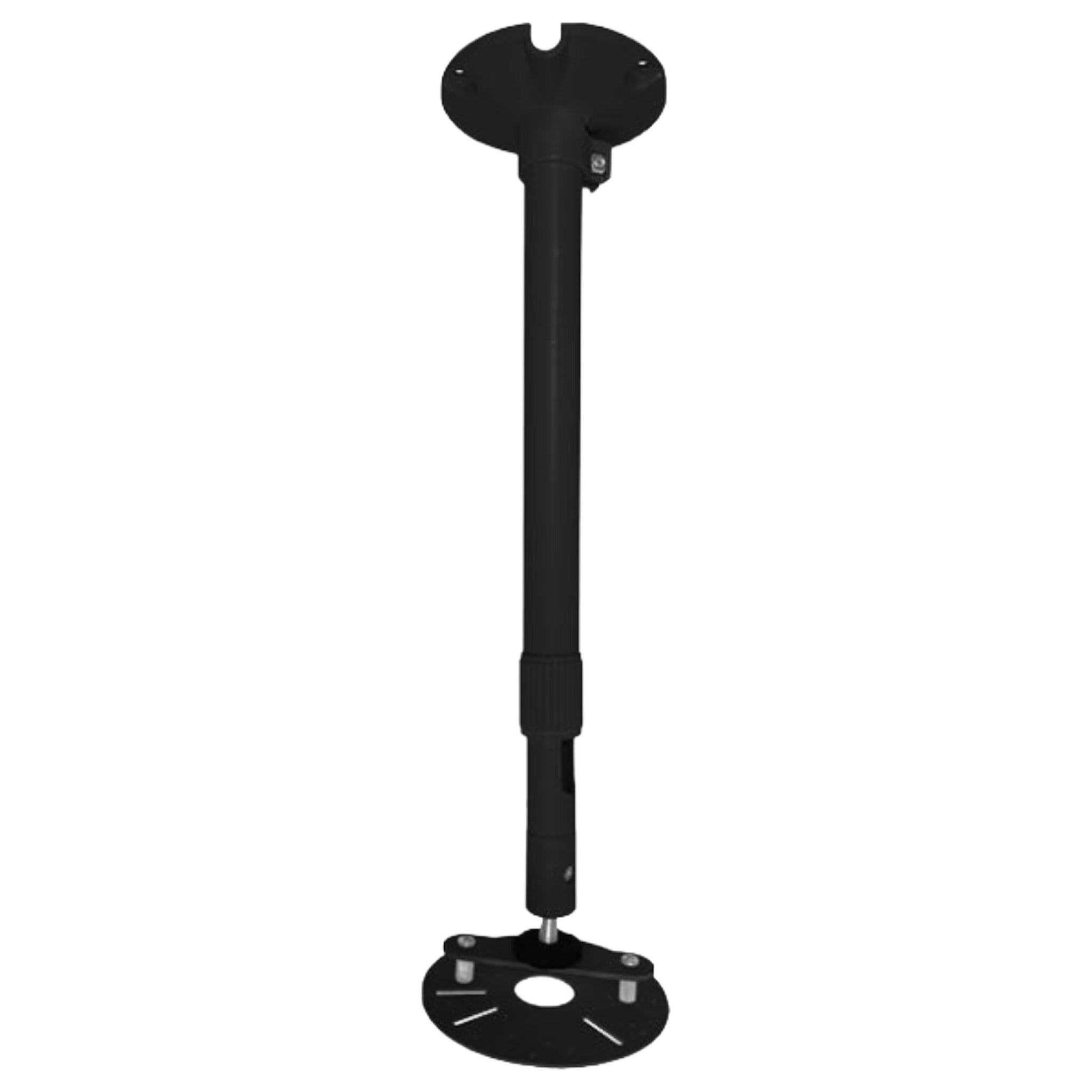

Universal Telescopic Ceiling Mount

adjustable from 0.42m to 0.59m

For XOVIS sensors of the PC2 series, the wall and ceiling mount PA-PC-MB is additionally required.

Fits AXIS cameras without an additional mount and of course also cameras from other manufacturers

Length: extendable from 0.42m to 0.59m

Universal mounting plate with a diameter of 120mm, suitable for cameras with hole radius from 30 to 51mm, mounted with 3 screws at a 120° angle or 4 screws at a 90° angle.

Swivel range: 360 degrees

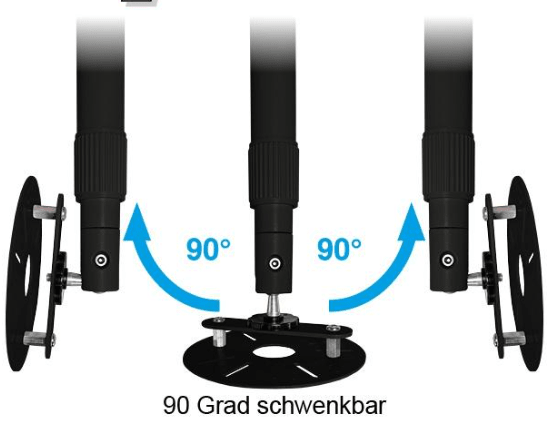

Tilt range: 90 degrees on both sides

Internal cable management

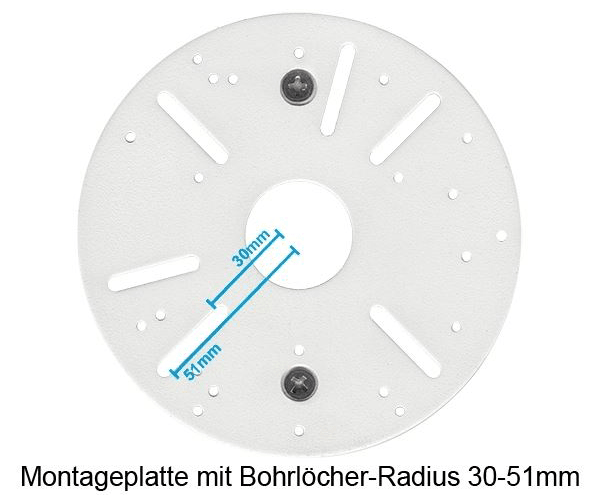

Universal mounting plate:

Diameter 120mm, suitable for cameras with hole radius from 30 to 51mm, mounted with 3 screws at a 120° angle or 4 screws at a 90° angle.

Included:

Screws and anchors for mounting on solid ceilings, screw set for camera mounting.

WARNING: Screws required for mounting XOVIS sensors are not included. (Countersunk screws M4x25mm and self-locking nut)

Weight: approx. 0.72 kg

"Finally, a universal ceiling mount with which we can suspend the Xovis sensor at the perfect height"
