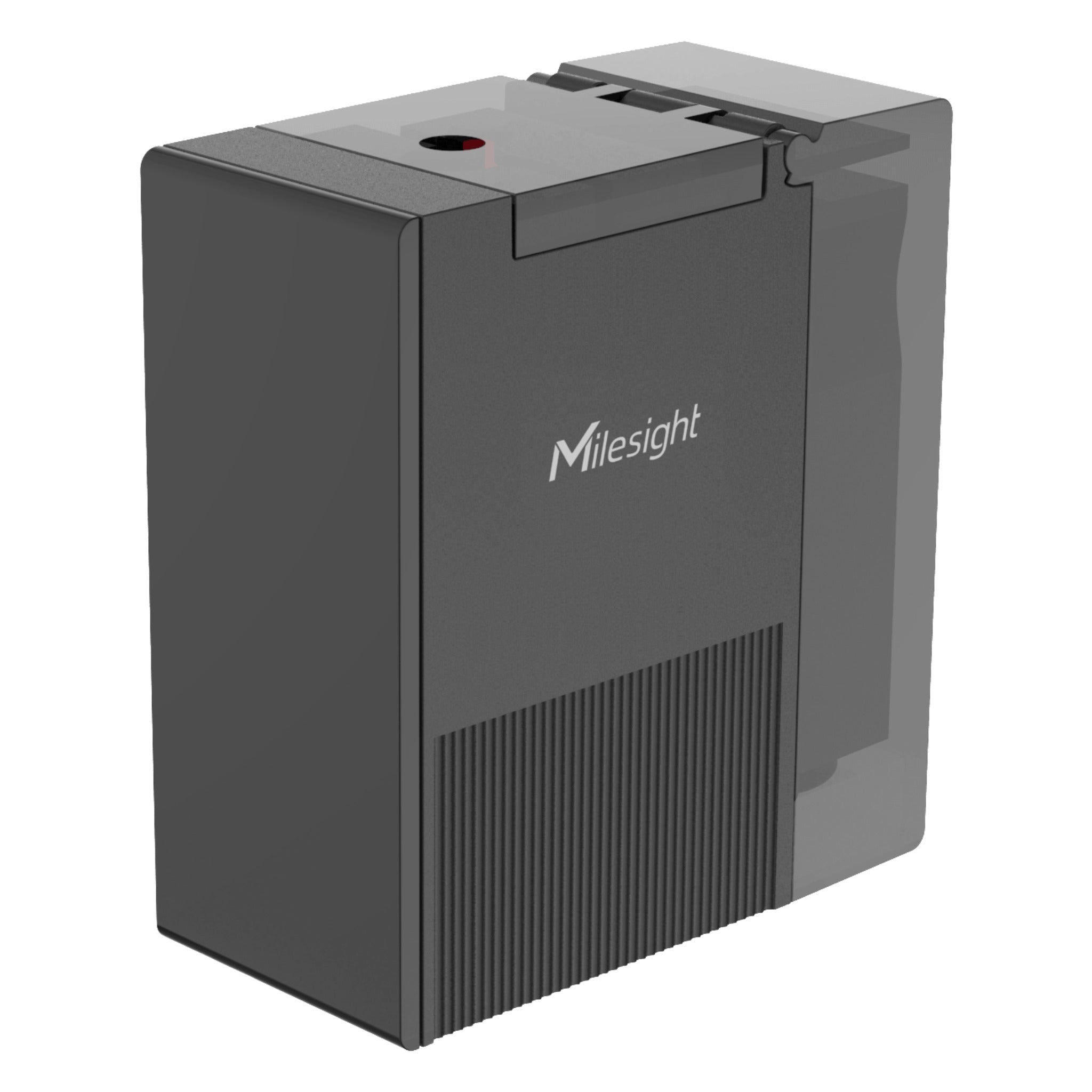

Storefront Sensor Mile One VS361

€99,00
€99,00
zzgl. MwSt. zzgl. Versand
Verfügbarkeit: Geringer Lagerbestand: 1 übrig
Artikel-Nr: 103798
Storefront Sensor Mile One VS361 - EastekOnlineshop
€99,00
€99,00

Storefront Sensor Mile One VS361 - Peoplcounter - Personenzähler

Vom Vorbeiläufer zum Besucher und vom Besucher zum Kunden.

Analysieren Sie Ihr Potenzial um langfristig im Stationärhandel bestehen zu können.



Specifications

Measurement
Sensor Technology Diffuse Reflective
Installation Height 0.7 - 1.2 m
Adjustable Detection Distance (Unobstructed) 1 - 9m (through the adjustment knob)
Light Infrared LED (940nm)
Digital Output
Output Type 1 × NPN open-collector Output
Maximum Load 1mA@5VDC
Connector 3.5mm Terminal Block
Other Interfaces
Power Interface • 1 × RJ45 (PoE PD) for Power Supply Only
• 1 × 2-pin Terminal Block (VIN+GND)
LED Indicators 1 × Infrared-triggered indicator
Physical Characteristics
Power Supply 802.3af PoE or 12 - 60 V DC/ 1 mA
Power Consumption Max. 0.9W
Operating Temperature -20°C ~ 50°C
Relative Humidity 0 - 95% (Non-condensing)
Ingress Protection IP65
Dimension 73.5 × 80 × 36 mm (2.89 × 3.15 × 1.42 in)
Weight 122 g
Material Polycarbonate (UL94 V2)
Color Black
Installation Wall Mounting
Approvals
Regulatory CE, FCC
Environment RoHS
