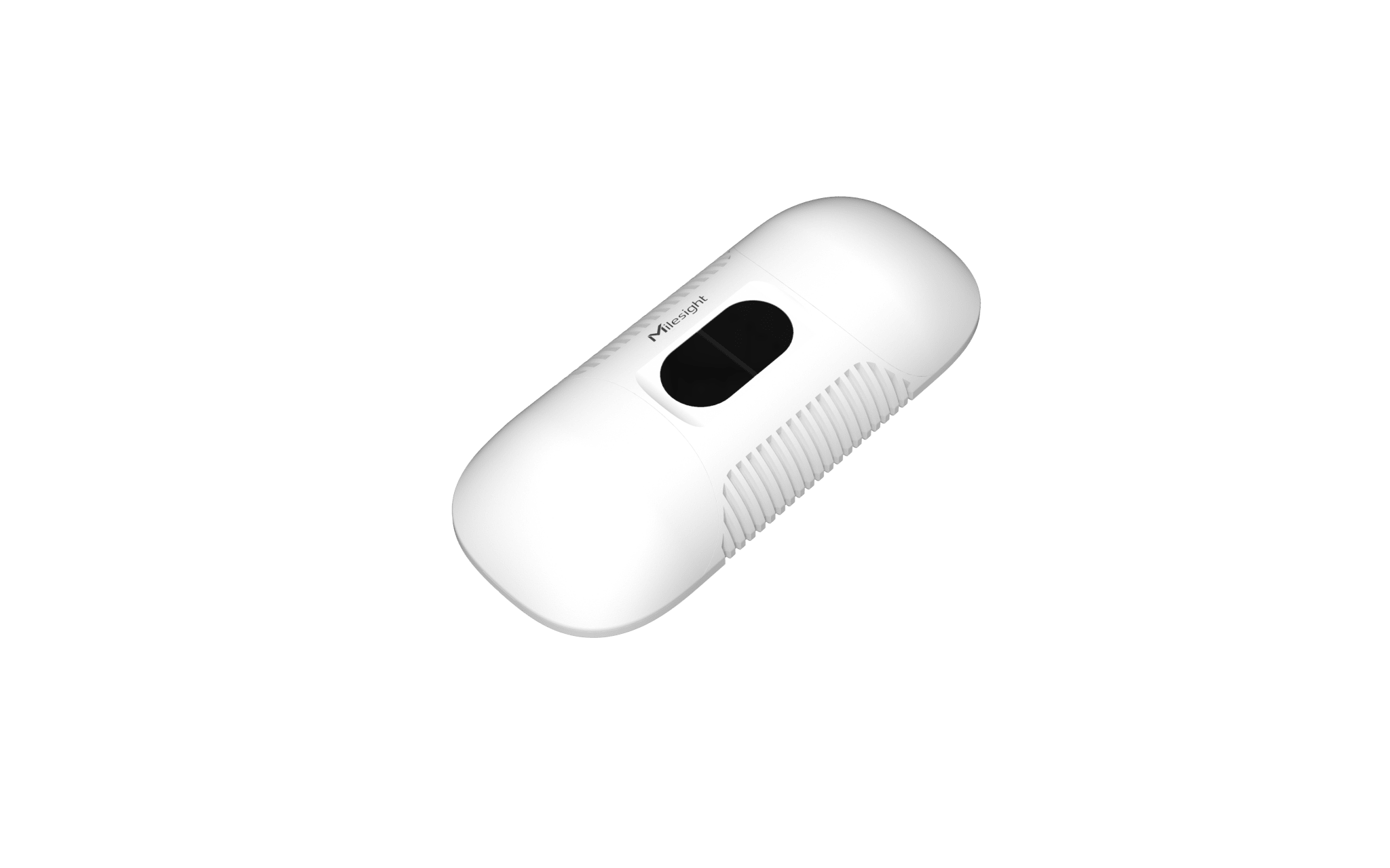

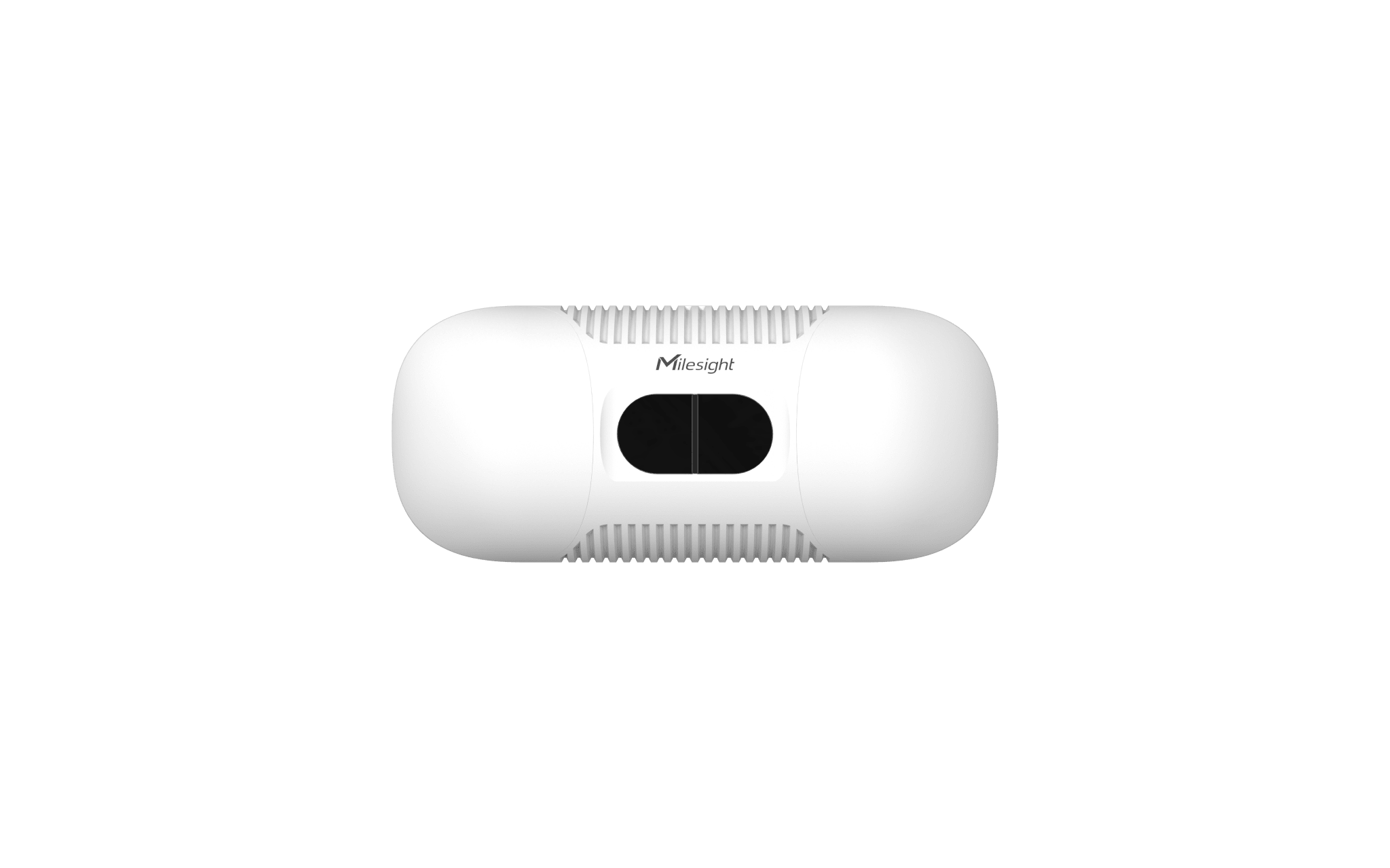

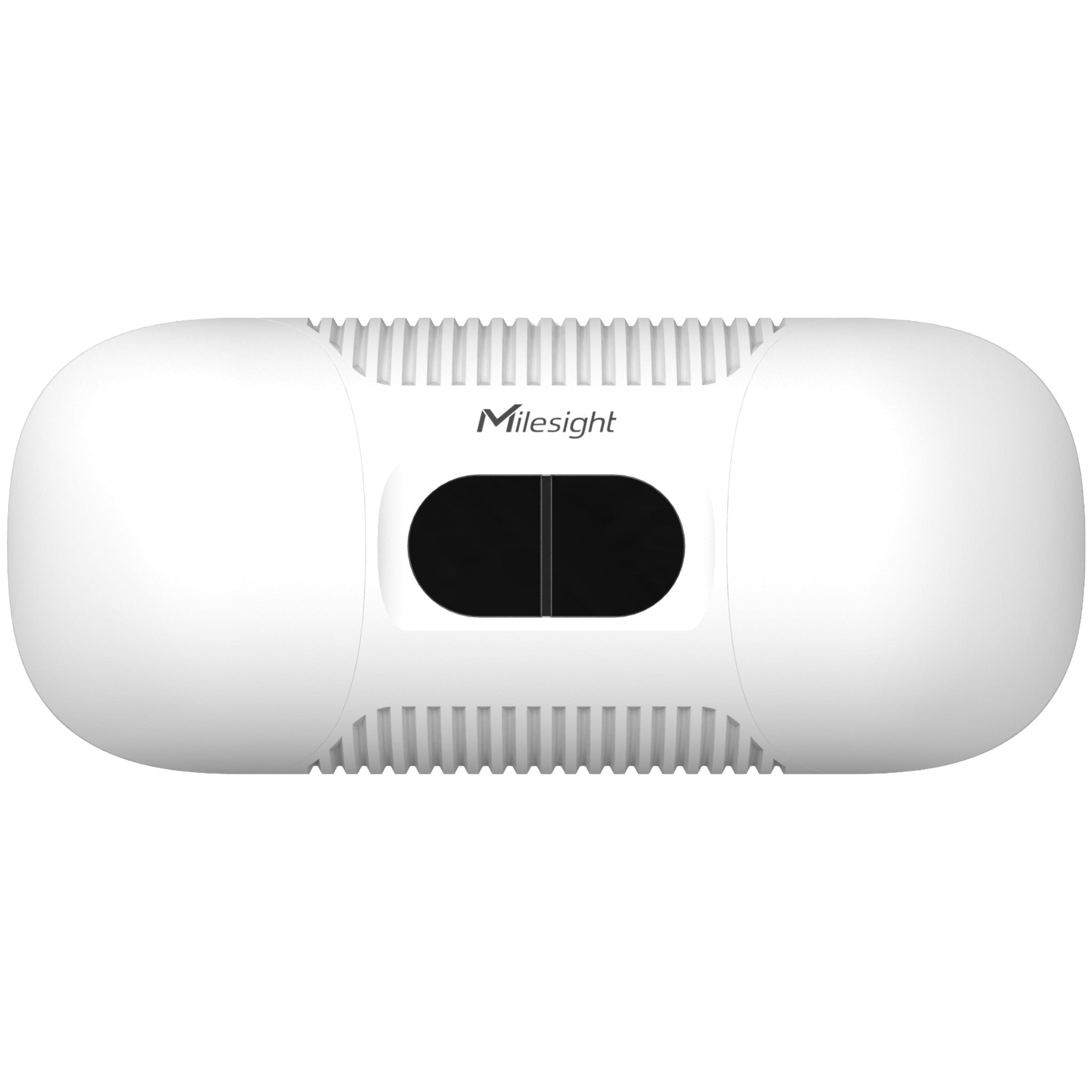

Personenzähler Mile-One 135-P 3D ToF Sensor

€749,00
€749,00
zzgl. MwSt. zzgl. Versand
Verfügbarkeit: Geringer Lagerbestand: 1 übrig
Artikel-Nr: 103789
Personenzähler Mile - One 135 - P 3D ToF Sensor - EastekOnlineshop
€749,00
€749,00

Personenzähler Mile-One VS135-P

3D ToF Sensor

ToF-Technologie für präzise und datenschutzfreundliche Personenzählung
Unsere People Counter mit ToF-Technologie erfassen Personenströme zuverlässig und präzise. Die Messung erfolgt über Tiefen- beziehungsweise Abstandsinformationen statt über klassische personenbezogene Bildauswertung. Dadurch eignet sich ToF besonders für moderne Anwendungen, bei denen Genauigkeit und Datenschutz gleichermaßen wichtig sind.

Sensor
Version PoE Version
ToF FoV Standard Version: 98° Horizontal, 80° Vertical
High Ceiling Mount: 60° Horizontal, 45° Vertical
ToF Light Beam 940nm (Invisible)
Distance Measuring Accuracy Standard Version: ± 3.5cm
High Ceiling Mount: ± 6.5cm
Detection Range Standard Version: 0.5 ~ 3.5m
High Ceiling Mount: 2~ 6.5m
Installation Height Standard Version: ≤ 3.5m
High Ceiling Mount: ≤ 6.5m
Luminous Mode Auto / Always On
Advanced Function
Bi-Directional People Counting Up to 4 detection lines for bi-directional people counting
U-turns Filtering Filter redundant counting of people wandering in the bi-directional people counting areas
Regional People Counting & Dwell Time Detection Up to 4 detection areas (up to 10 decagon for each area) for regional people counting and dwell time detection
Group Counting Support
Children/Adults Differentiation Support
Staff Detection Support
Occlusion Detection Support
Shopping Cart Fill Level Detection Support
Heat Map Motion Heat Map, Dwell Heat Map
Multi-Device Stitching Up to 8 devices stitching to expand coverage
Data Retransmission Support 8 x 50000 data retransmission packets
Video Validation Support 1 channel video validation ( the duration of 4 hours)
Data Transmission
Ethernet Port 1 × RJ45 10/100 Mbps (PoE PD)
Ethernet Isolation 1.5 kV RMS
Network Protocol HTTP, HTTPS, MQTT, MQTTS, NTP, 802.1x, SSH, LLDP, BACnet/IP,etc.
Other Interfaces
Power Input 1 × DC Jack Connector
Alarm I/O 1/1
Wi-Fi IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration)
Button 1 × Reset/Wi-Fi Button
LED Indicators 1 × RGB LED indicator
Physical Characteristics
Local Storage Store up to one million data records and supports to export csv file
Power Supply 802.3at PoE+or DC 12V/2A
Operating Power Consumption Standard Version: Avg. 8 W, Max. 17W
High Ceiling Mount: Avg. 10 W, Max. 24 W
Hibernate Power Consumption 5W
Operating Temperature -20°C ~50°C
Relative Humidity 0 ~ 95% (Non-condensing)
Ingress Protection IP40
Dimension 200 x 35 x 85 mm (7.87 x 1.38 x 3.35 in)
Weight 419g

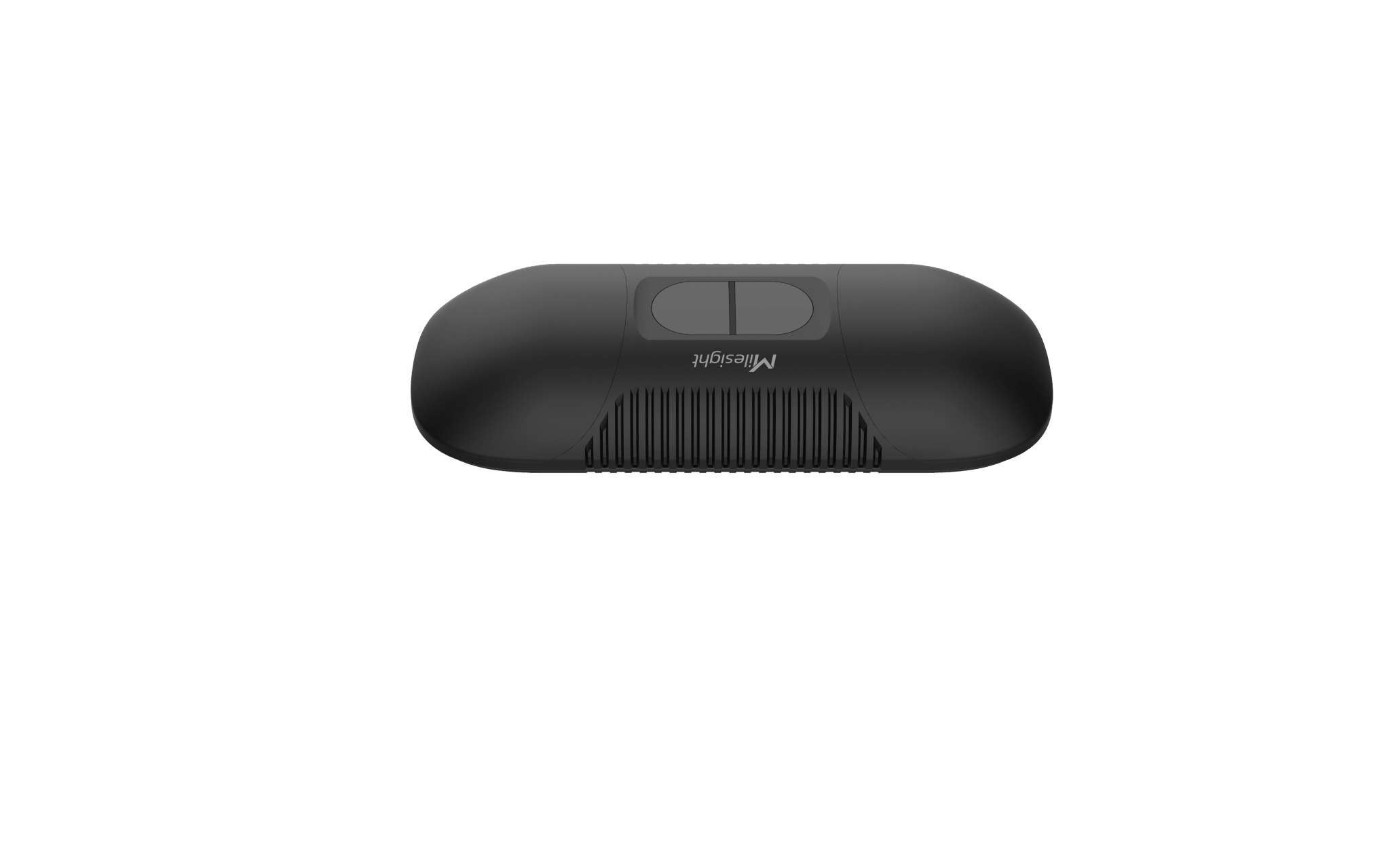

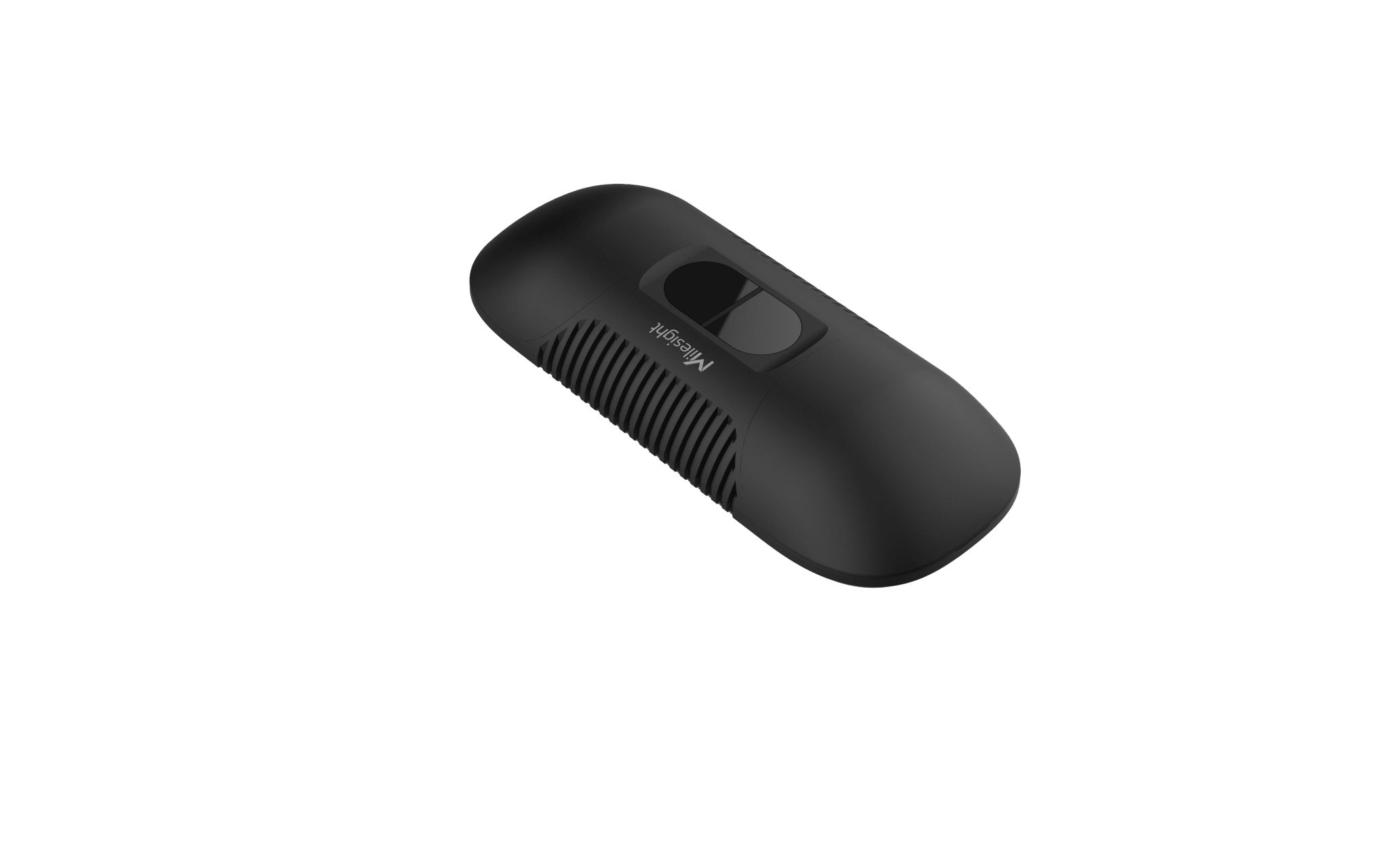

Color White or Black (Optional)
Installation Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket)
Approvals
Regulatory FCC, CE, GDPR



Auswertung entweder via API oder über unseren günstigen Cloudservice
