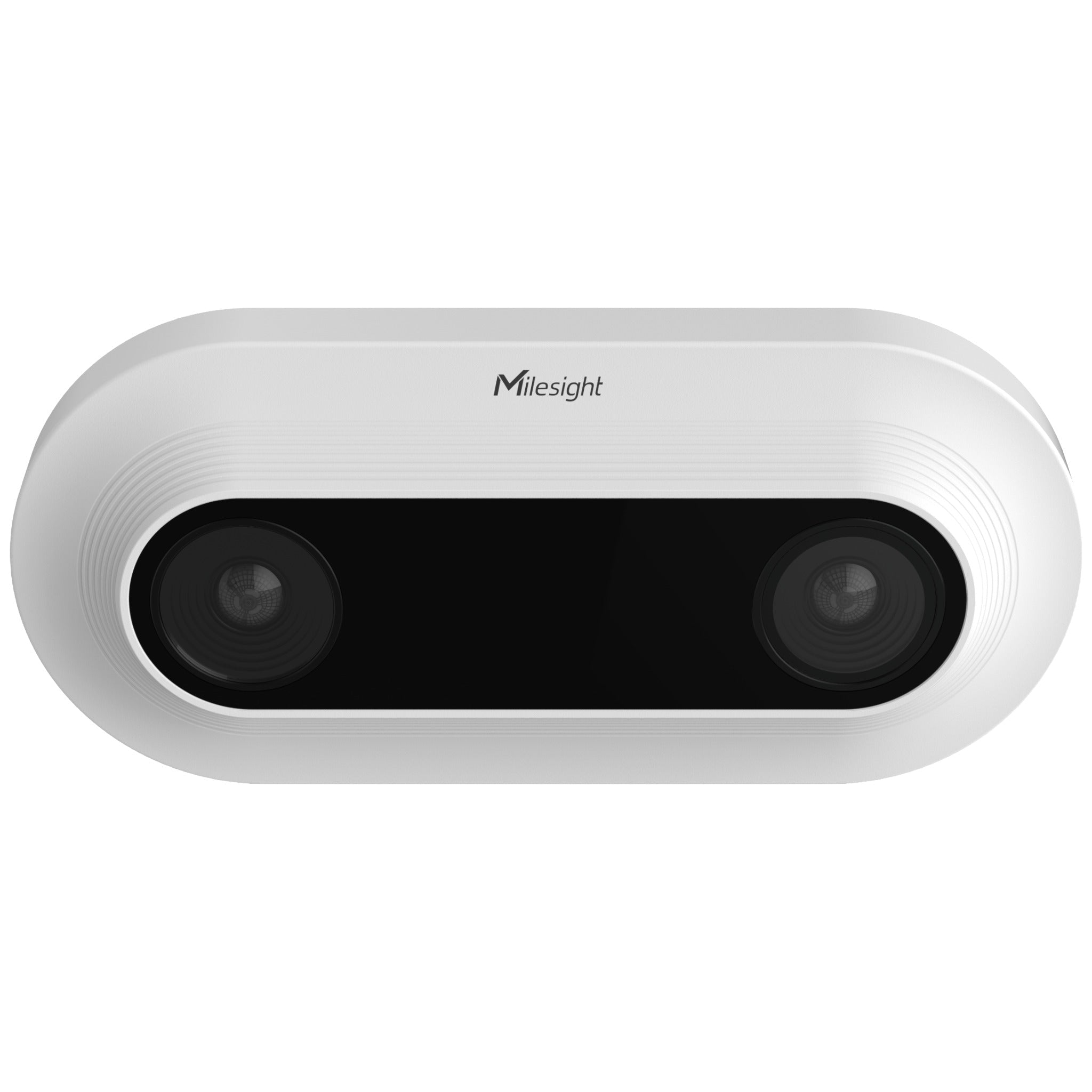

Personenzähler Mile-One 125 LW 3D Stereovision Sensor

€749,00
€749,00
zzgl. MwSt. zzgl. Versand
Verfügbarkeit: Geringer Lagerbestand: 2 übrig
Artikel-Nr: 103788
Personenzähler Mile - One 125 LW 3D Stereovision Sensor - EastekOnlineshop
€749,00
€749,00

Personenzähler Mile-One 125 LW

3D Stereovision Sensor mit onboard Reports

Für niedrige Decken und breite Eingänge geeignet



Sensor
Sensor 2 × 5MP Sensor (2592 × 1744)
Installation Height 1.9 ~ 3.5m
FoV 130° Horizontal, 117° Vertical
Required Illumination 0 lux with iR illuminators On
Advanced Function
Bi-Directional People Counting Up to 4 detection lines for bi-directional people counting
U-turn Filtering Filter redundant counting of people wandering in the bi-directional people counting areas
Regional People Counting & Dwell Time Detection Up to 4 detection areas (up to 10 decagon for each area) for regional people counting and dwell time detection
Children/Adult Differentiation Support (Installation Height: 1.9 ~ 3.3m)
Group Counting Support
Staff Detection Support (Installation Height: 1.9 ~ 3.3m)
Gender Recognition Support (Installation Height: 1.9 ~ 3.3m)
Heat Map Support
View Direction Detection Support
Multi-Device Stitching Support up to 16 devices stitching to expand coverage
Validation 8GB
Data Retransmission Support 8 x 50000 data retransmission packets
Data Transmission
Ethernet Port 1 × RJ45 10/100 Mbps (PoE PD)
Network Protocol MQTT(s), HTTP(s),802.1x, SSH, NTP,etc.
Frequency Band -
SIM Slot -
Other Interfaces
Power Input 1 × DC Jack Connector
DI/DO 1/2
Serial Interface 1 × RS485 (Under Development)
Wi-Fi IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration)
Button 1 × Reset/Wi-Fi Button
LED Indicators 1 × RGB LED indicator
Physical Characteristics
Local Storage Store up to one million data records and supports to export csv file
Power Supply 802.3af PoE or DC
12V/1A
Power Consumption Avg. 6.9W
Max. 12W
Operating Temperature -20°C ~ 60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Ingress Protection IP40
Dimension 185 × 85 × 34 mm (7.26 × 3.35 × 1.34 in)
Weight 284.4g
Color White or Black (Optional)
Installation Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket)



Wichtige Information:

Dieser Sensor ist ein hochenauer Personenzähler. Die Einrichtung des Sensors muss durch fachkundiges Personal vorgenommen werden. Sie können die Inbetriebnahme durch uns buchen (Artikel 103325).

Um die Daten auszuwerten, benötigen Sie einen Cloudservice oder tiefe Kenntnisse in der API Abfrage.

Bitte bestellen Sie das Gerät nur, wenn Sie über die entsprechenden Kenntnisse verfügen oder lassen Sie sich zuvor durch uns beraten.

Zubehör

Produkt Preis
Vemcount PRO - Hosted Cloudservice - Sensor License Vemcount PRO - Hosted Cloudservice - Sensor License
€22,00 EUR *
Vemcount Lite - Hosted Cloudservice - Sensor License Vemcount Lite - Hosted Cloudservice - Sensor License
€15,00 EUR *
* zzgl. MwSt. zzgl. Versand
