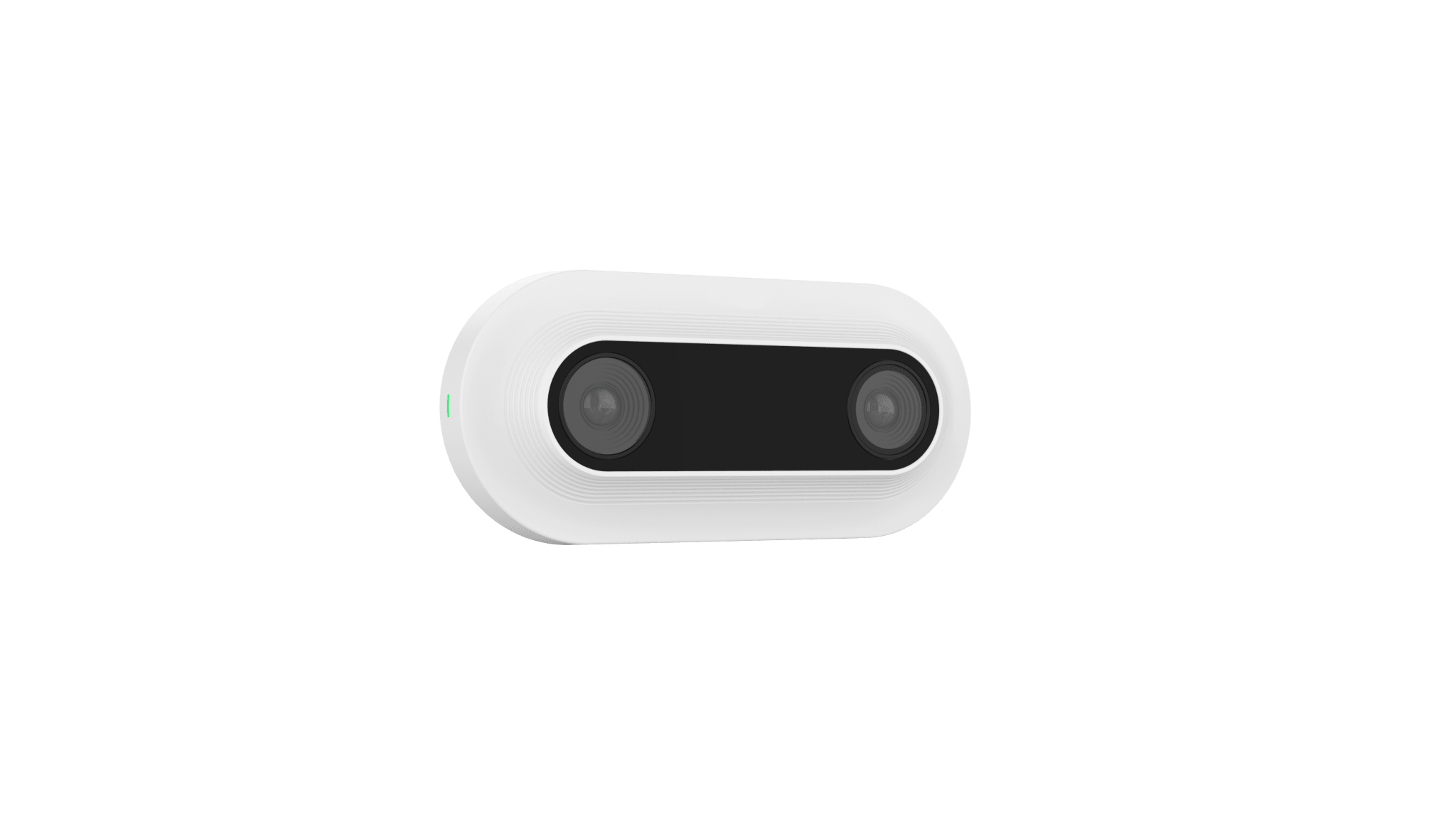

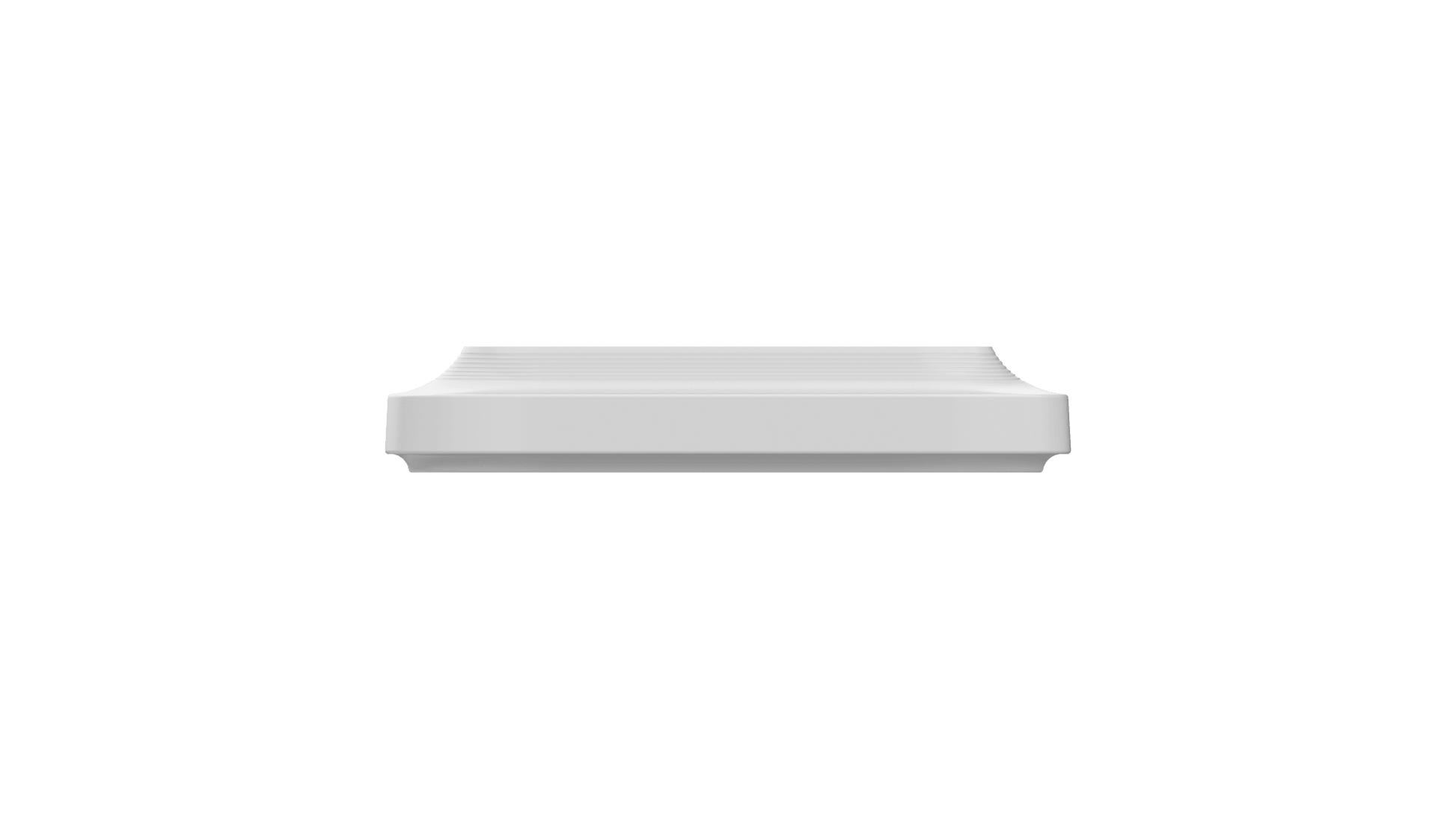

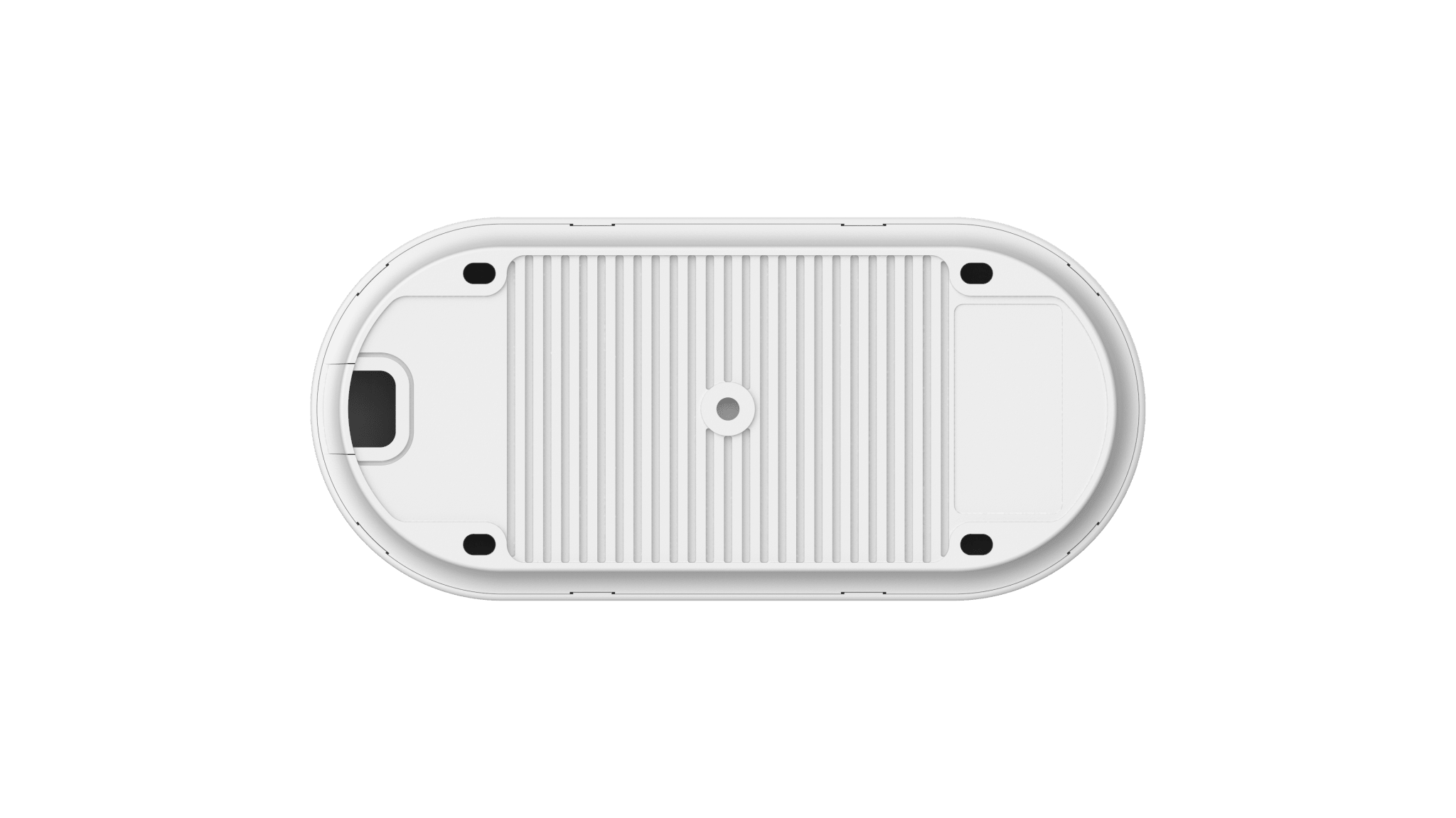

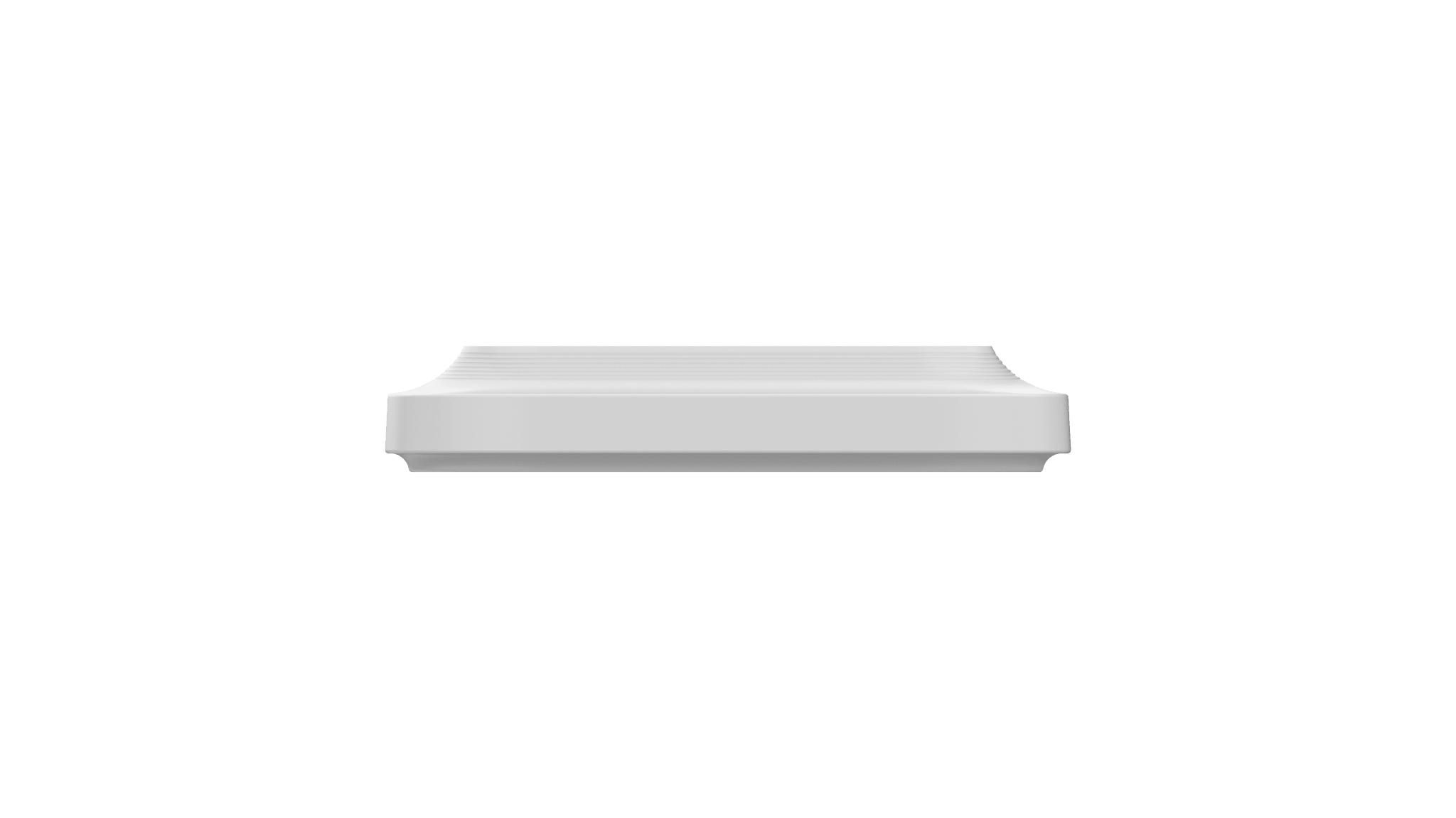

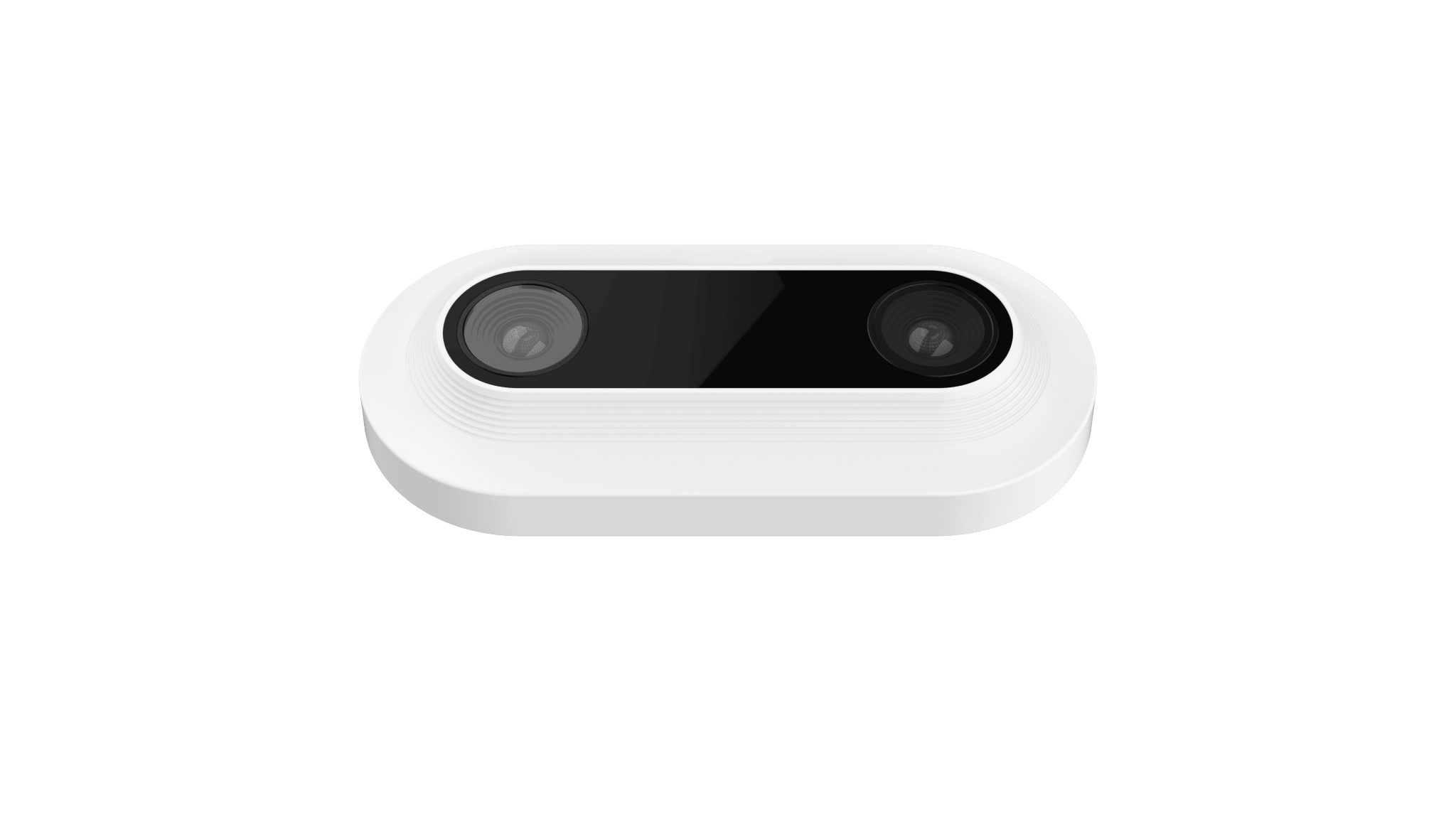

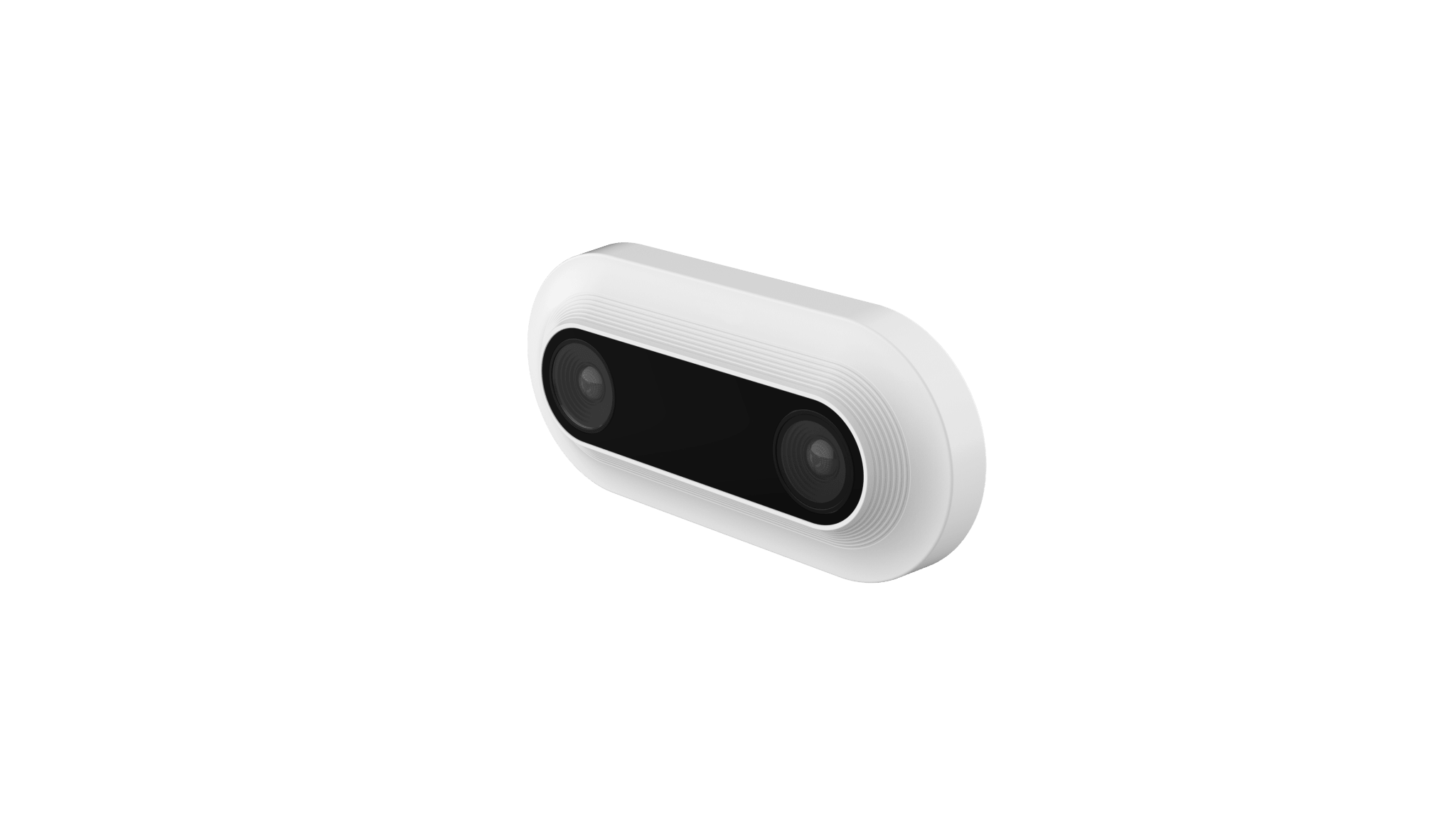

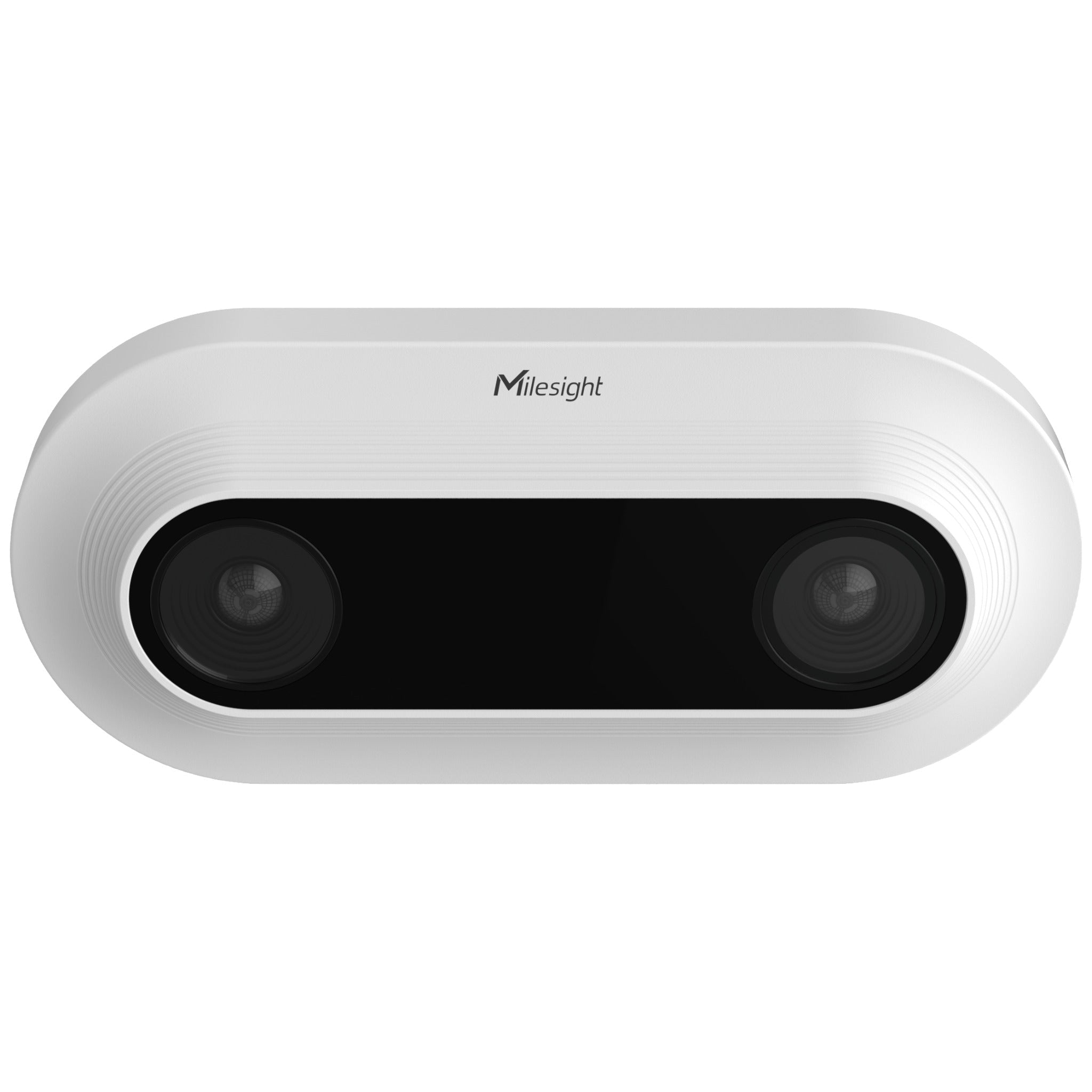

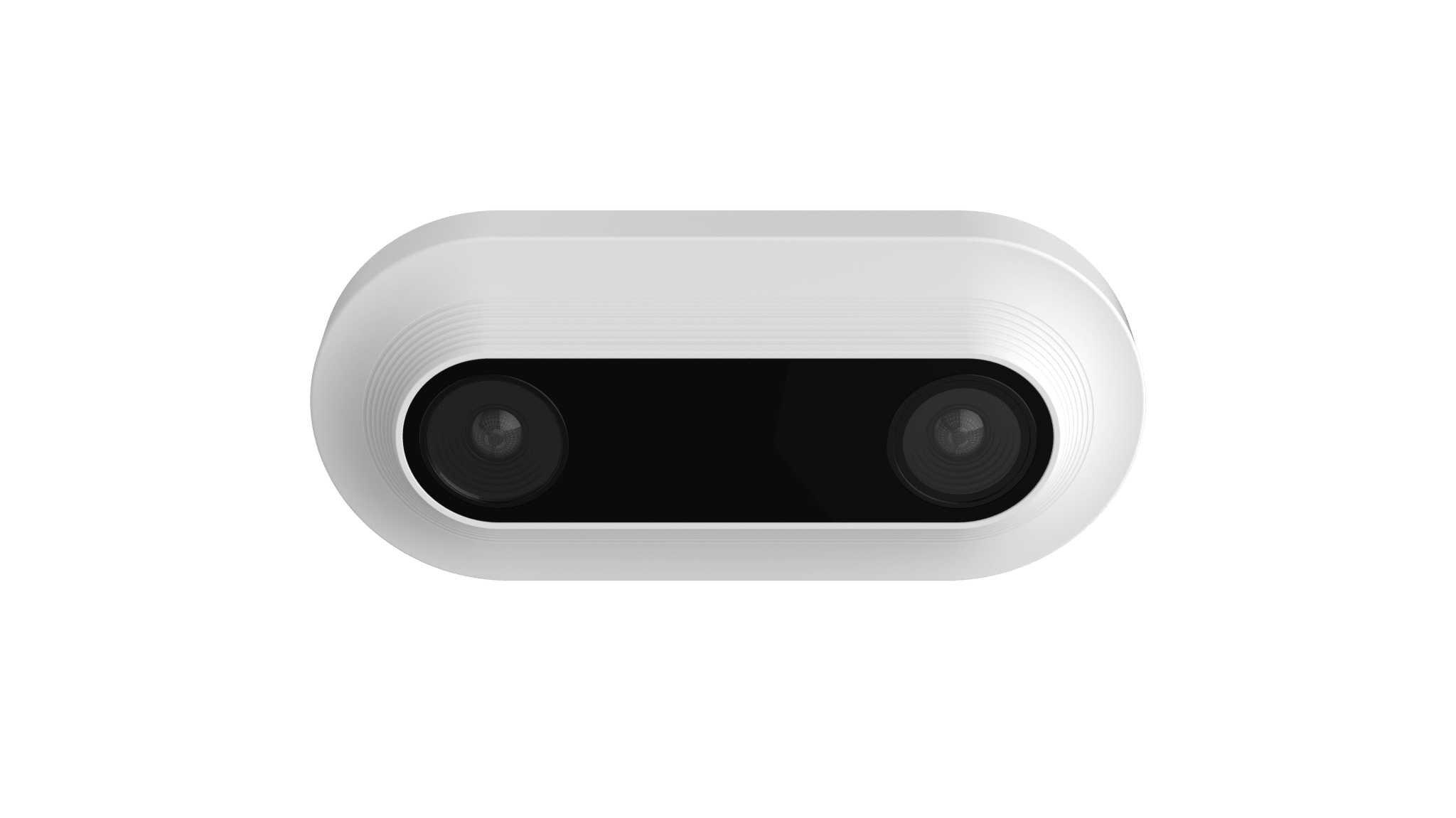

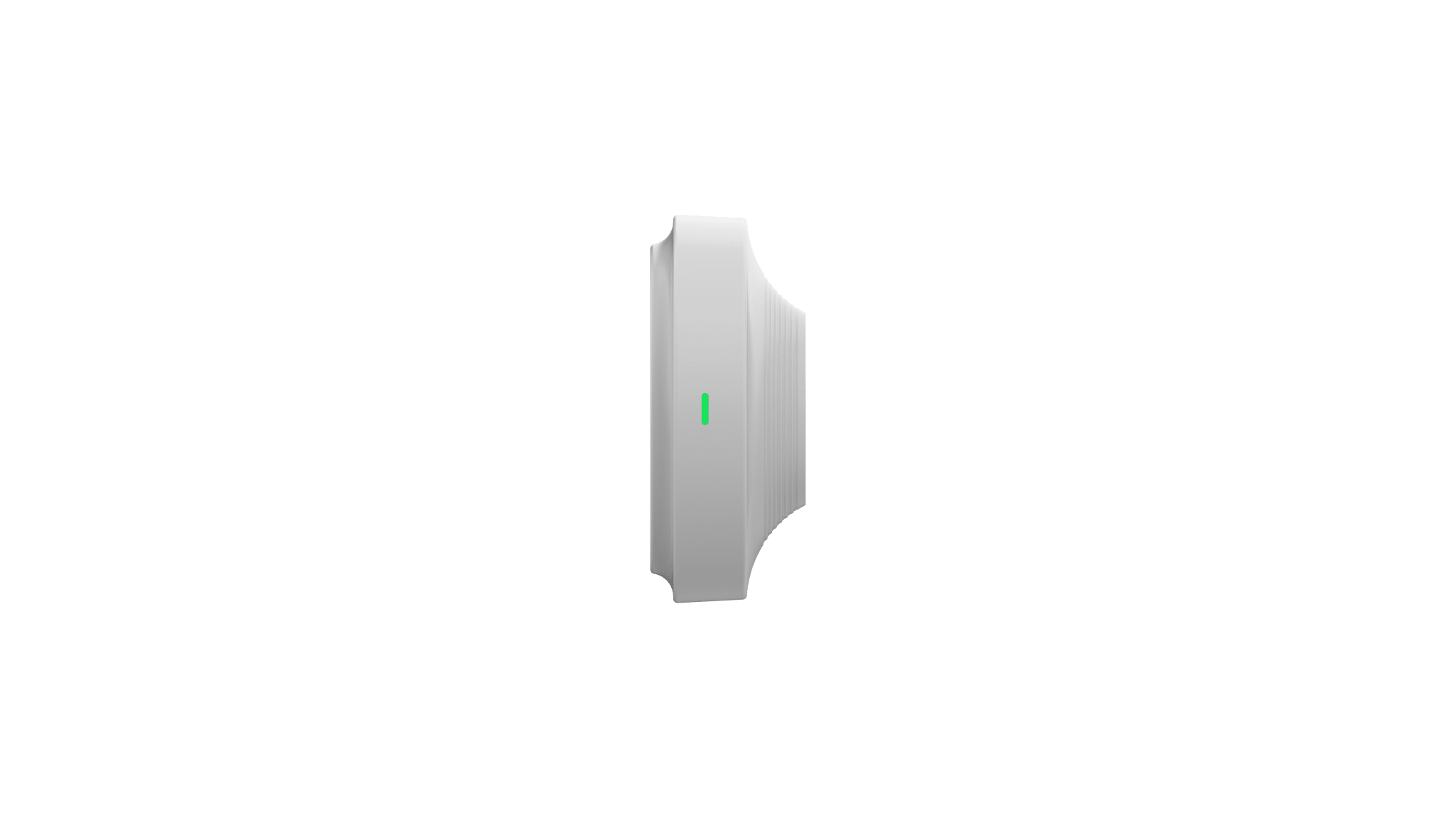

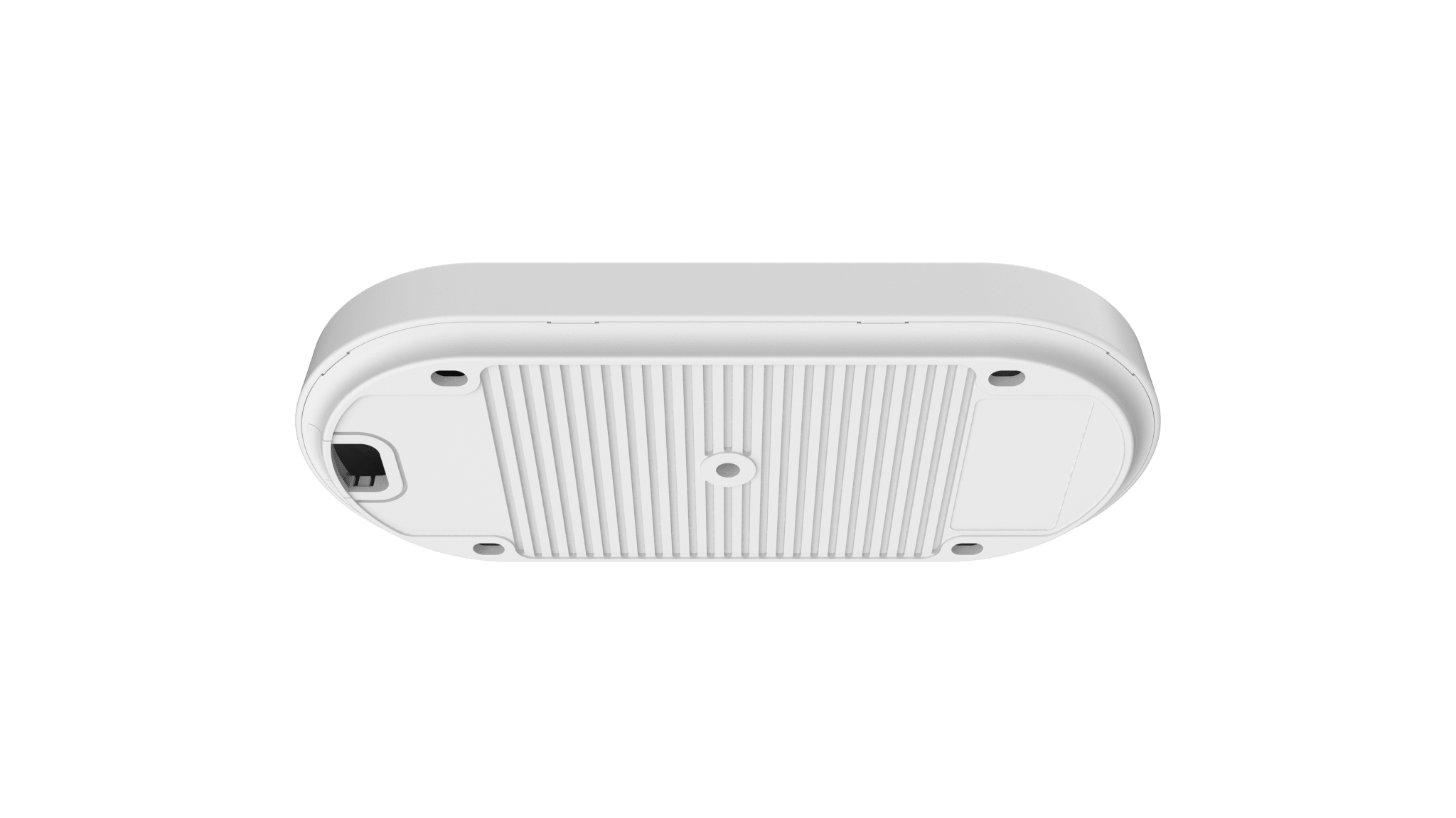

Personenzähler Mile-One 125 3D Stereovision Sensor

€569,00
€569,00
zzgl. MwSt. zzgl. Versand
Verfügbarkeit: Geringer Lagerbestand: 5 übrig
Artikel-Nr: 103787
Personenzähler Mile - One 125 3D Stereovision Sensor - EastekOnlineshop
€569,00
€569,00

Personenzähler Mile-One VS125

3D Stereovision Sensor

Stromversorgung: DC / PoE
Betriebstemperatur: -20 °C bis 50 °C / IP40
Stereo-Vision-Technologie und KI-Algorithmus
Entspricht der DSGVO
Für die Montage an hohen Decken bis zu 6 m, unterstützt automatische Neigungskorrektur
und automatische Anpassung des Infrarotlichts
Unterstützt Personen-Zählung bei Linienüberschreitung / U-Turn-Filterung / regionale Personen- / Unterscheidung zwischen Kindern und Erwachsenen
Verweildauererkennung / Gruppenzählung / Heatmap / Multi-Sensor-Stitching

Speichert lokal 1.000.000 Datensätze und unterstützt den Export als CSV-Datei

Sensor
Sensor 2 × 4MP Sensor (2688 x 1520)
Installation Height 2.2 ~ 6m
FoV 101° Horizontal, 70° Vertical
Required Illumination 0 lux with iR illuminators On
Advanced Function
Bi-Directional People Counting Up to 4 detection lines for bi-directional people counting
U-turn Filtering Filter redundant counting of people wandering in the bi-directional people counting areas
Regional People Counting & Dwell Time Detection Up to 4 detection areas (up to 10 decagon for each area) for regional people counting and dwell time detection
Children/Adult Differentiation Support (Installation Height: 2.2 ~ 4m)
Group Counting Support
Staff Detection Support (Installation Height:2.2 ~ 4m)
Gender Recognition Support (Installation Height:2.2 ~ 4m)
Heat Map Support
View Direction Detection Support
Multi-Device Stitching Support up to 16 devices stitching to expand coverage
Validation 8GB
Data Retransmission Support 8 x 50000 data retransmission packets
Data Transmission
Ethernet Port 1 × RJ45 10/100 Mbps (PoE PD)
Network Protocol MQTT(s), HTTP(s), 802.1x, SSH, NTP, OpenVPN, BACnet/IP, etc.
Frequency Band -
SIM Slot -
Other Interfaces
Power Input 1 × DC Jack Connector
DI/DO 1/2
Serial Interface 1 × RS485 (Under Development)
Wi-Fi IEEE 802.11 b/g/n, 2.4GHz (AP Mode for configuration)
Button 1 × Reset/Wi-Fi Button
LED Indicators 1 × RGB LED indicator
Physical Characteristics
Local Storage Store up to one million data records and supports to export csv file
Power Supply 802.3af PoE or DC 12V/1A
Power Consumption 5.9W
Operating Temperature -20°C ~ 50°C
Relative Humidity 0 ~ 95% (Non-condensing)
Ingress Protection IP40
Dimension 185 × 85 × 34 mm (7.26 × 3.35 × 1.34 in)
Weight 275g
Color White or Black (Optional)
Installation Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with Optional Multifunctional Bracket)
